Crest Diameter and Ovality Gages

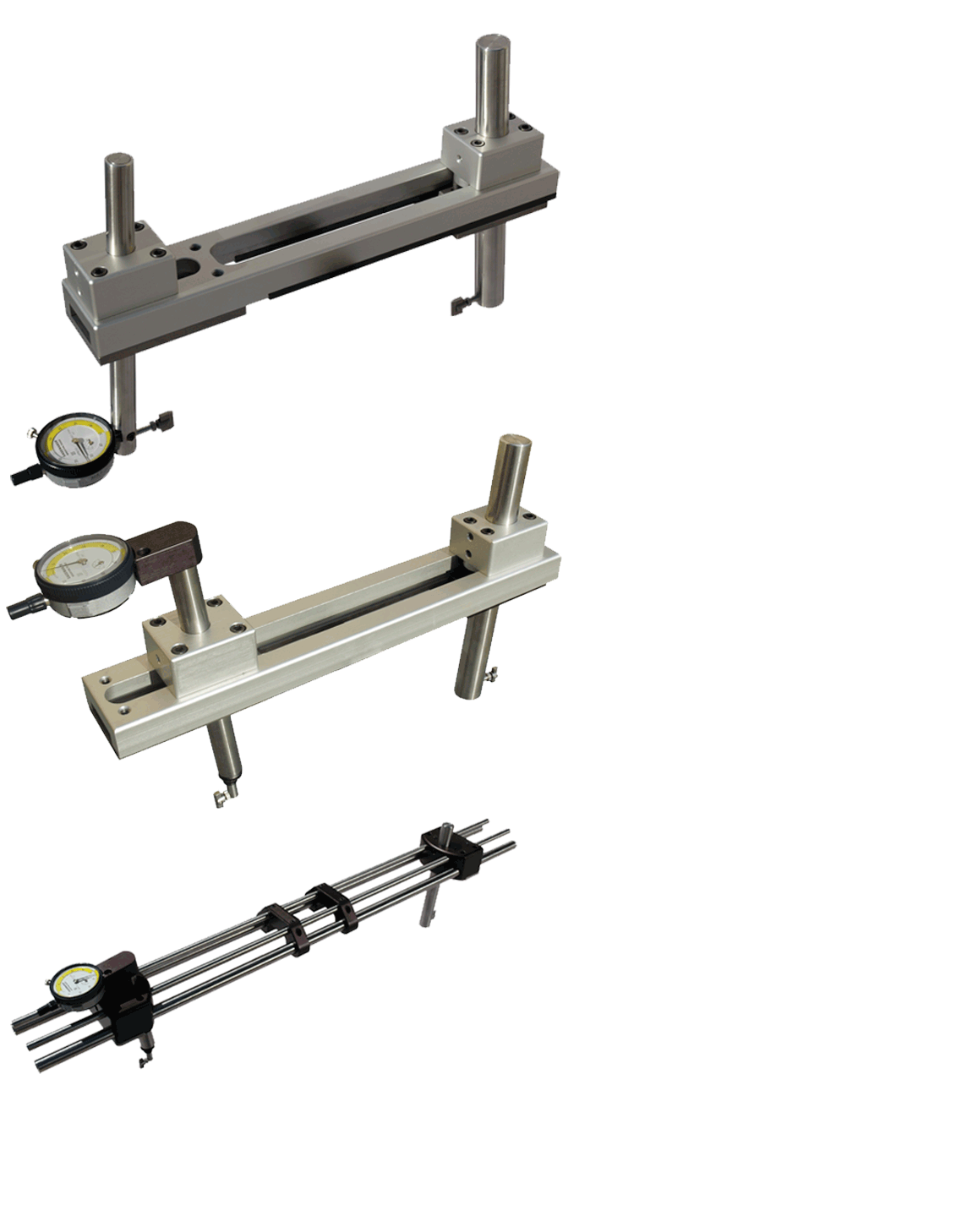

The internal and external pitch diameters of tapered threaded connections are measured using the Gagemaker MRP® crest diameter gauges. These precise gauges allow you to have complete control over your quality because they instantly identify any minute deviations in diameter or ovality. These adaptable gauges may quickly be adjusted to measure thread sizes between 1½” and 20". There is no longer a need for a room full of ring or plug gauges because one gauge can inspect a variety of diameters.

Part Number : MRP-1003 Gagemaker MRP-1003 | External/Internal Crest Diameter Gage | 4.4” Reach | External Range 1½” - 4½” | Internal Range 1½” - 4½”

Products - Crest Diameter and Ovality Gages Kuwait

Crest Diameter and Ovality Gages

Gagemaker MRP-1003 | External/Internal Crest Diameter Gage | 4.4” Reach | External Range 1½” - 4½” | Internal Range 1½” - 4½”

Gagemaker MRP-1012-TSS | Internal/External Pitch Diameter Gage for Two Step Seal | Upper and lower arms are .740” diameter | Upper arm has standard travel of .150”.

Gagemaker MRP-1012-TST | Internal/External Pitch Diameter Gage | Two Step Thread | w/ 1.030” Horseshoe standoff for front and rear measurements | Arms have .740” diameter | Upper arm has extended travel of .350”

Gagemaker MRP-3001 | External Crest Diameter Gage | 3⅜” reach | Range 8⅝” – 24”

Gagemaker MRP-3002 | Internal Crest Diameter Gage | 3⅜” reach | Range 8⅝” – 24”

Gagemaker MRP-3003 | Internal/External Crest Diameter Gage, 3⅜” reach | Range 8⅝” – 24”

Gagemaker MRP-3004 | Internal/External Crest Diameter Gage | 3⅜” reach | Range 20” – 36”

Gagemaker MRP-1500 | Solid Body External/Internal Crest Gage | 3⅜” Reach

Gagemaker MRP-2511 | Solid Body External Pitch Diameter Gage | 4” reach

Gagemaker MRP-2511-7 | Solid Body External Crest Diameter Gage | 7” reach | Range 4½” – 9⅝”

Gagemaker MRP-2512 | Solid Body Internal Crest Diameter Gage | 3⅜” reach | Range 4½” – 9⅝”

Gagemaker MRP-2512-7 | Solid Body Internal Crest Diameter Gage | 7” reach | Range 2⅜” – 4½”

Gagemaker MRP-2513 | Solid Body External/Internal Crest Diameter Gage | 3⅜” reach | Range 4½” – 9⅝”

Gagemaker MRP-2521 | Solid Body External Crest Diameter Gage | 4” reach | Range 4½” – 13⅜”

Gagemaker MRP-2522 | Solid Body Internal Crest Diameter Gage | 4” reach | Range 4½” – 13⅜
