Mitutoyo 513-424T Lever Indicator Range 0.5mm, Graduation 0.01mm Full Set kuwait
Brand :
Stock Status :
In Stock
Brand :
Stock Status :
In Stock
Part Number : 513-424T

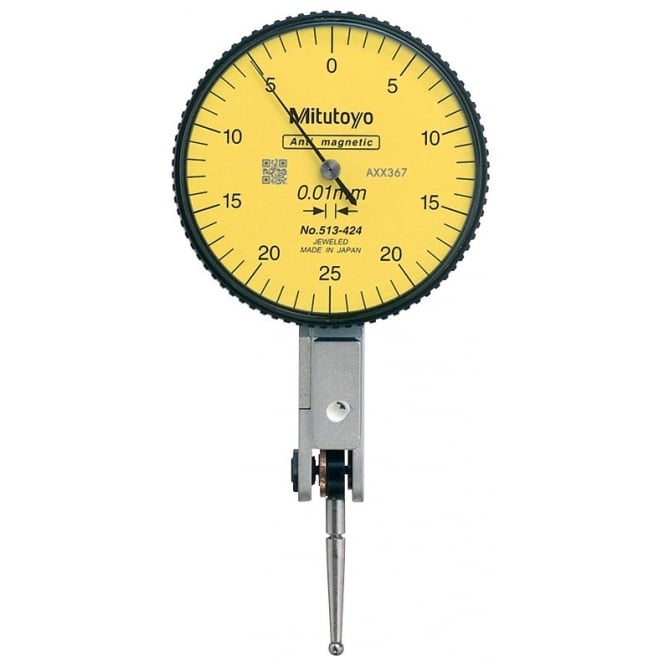

A Mitutoyo versatile anti-magnetic type lever indicator (or dial test indicator, DTI) suited to alignment operations on machine tools and similar applications. This indicator automatically adapts to the required measuring direction on contact, and the jewelled movement provides lowest friction and stiction for smooth and precise operation. Supplied with a comprehensive set of mounting accessories and interchangeable styli that enable immediate use in almost any situation.
Specification
Features
Catalog
Specifications
Details
SKU
513-424T
Type
Lever
Range
0.5mm
Display Type
Non-digital
Accuracy
+/-5
Data Output
No
Measuring Units
Millimetre
Measuring Force
0.3N or less
Graduations
0.01mm
Dial Reading
0-25-0
Brand
Mitutoyo
Drastically enhanced durability, sensitivity and visibility.
Glare-free flat crystal face allows easy reading of graduations.
O-ring seal on the bezel has the effect of providing smooth rotation and prevents dust and oil from penetrating through to the dial face.
The stylus length is on the dial face to reorder a replacement
