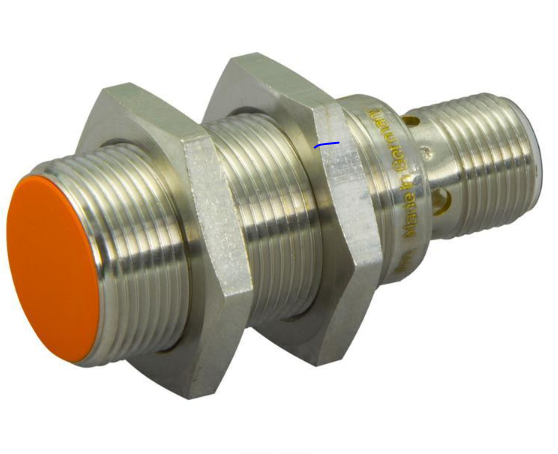

The inductive sensor IGS204 - IAE3008-BPKG/M/US from ifm operates with a supply voltage of 10-36 V DC. The output is a positive-switching NO contact. Thanks to the increased sensing range of 8 mm with flush installation the inductive sensor IGS204 - IGB3008BBPKG/M/US provides more reliability in your applications. Thanks to the lasered type label, 4- LED and standardised M12 connector the inductive sensor IFS204 - IFB3008BBPKG/M/US is often used in factory automation and in machine building.
Specification
Features
Catalog
Youtube
Specifications
Details
Electrical design
PNP
Operating voltage [V]
10-30 DC V
Sensing range [mm]
8 mm
Mounting
Flush mountable
Reverse polarity protection
yes
Current consumption [mA]
<10
Output function
Normally open
System
Gold-plated contacts; Increased sensing range
Housing
Threaded type
Installation
Flush
Robust metal housing for use in harsh industrial environments
Clearly visible indication of the switching status
