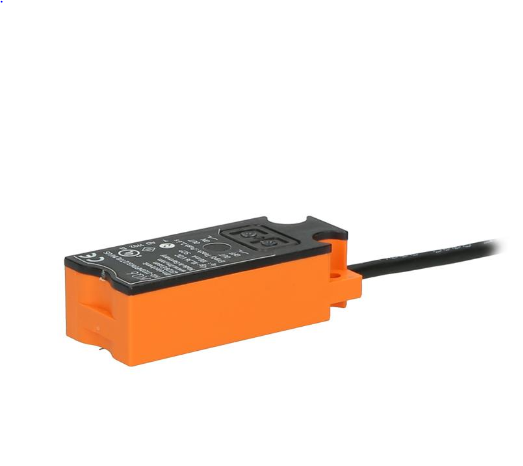

The capacitive sensor KQ6004 - KQ-3120NFPKG/2T/0.04m/AS from ifm made of rectangular plastic with an operating voltage of 10-36 V DC can be programmed as normally open or normally closed in its output function. The sensing range is 12 mm with non-flush installation. The capacitive sensor KQ6004 - KQ-3120NFPKG/2T/0.04m/AS has a connection cable with connector. Due to the increased protection rating IP65/IP67 the detection of dry bulk material and liquids and the detection through non-metallic vessel walls or bypass pipes is possible without any problems.
Specification
Features
Catalog
Youtube
Specifications
Details
Operating voltage [V]
10-36 DC V
Sensing range [mm]
12 mm
Mounting
non-flush mountable
Short-circuit protection
yes
Overload protection
yes
Reverse polarity protection
yes
Switching frequency DC [Hz]
10 Hz
Housing
Rectangular
Output function
normally open / closed; (selectable)
Electrical design
PNP
Easy parameter setting via IO-Link
Output function normally open / normally closed programmable
Clearly visible indication of the switching status by LED
Easy installation with mounting adapters and cable ties
