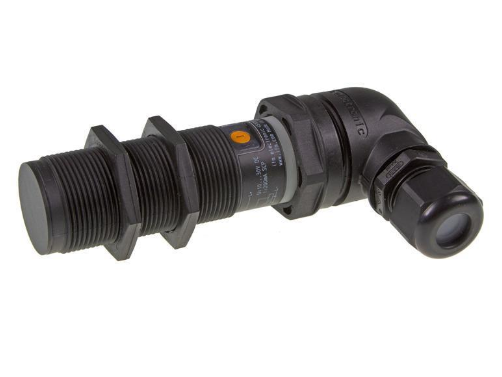

The capacitive senso KI001A - KIE2150NFBOA/3D from ifm with an M30 x 1.5 plastic thread and an operating voltage of KI01A - KIE2150NFBOA/3D can be programmed as normally closed/normally open output function. The adjustable sensing range is 15 mm with non-flush installation. The capacitive sensor KI001A - KIE2150NFBOA/3D is connected via terminals up to 1.5 mm² with 90° cable outlet. Due to the ATEX approval, group II, category 3D the capacitive sensor is best suited for use in hazardous areas.
Specification
Features
Catalog
Youtube
Specifications
Details
Operating voltage [V]
30-250 AC V / 20-250 DC V
Sensing range [mm]
15mm
Mounting
non-flush mountable
Overload protection
no
Short-circuit protection
no
Reverse polarity protection
no
Switching frequency DC [Hz]
10 Hz
Housing
Threaded type
Output function
normally open / closed; (selectable)
Installation
Non flush
For applications in hazardous areas
With combined AC/DC output stage
Easy setting of the sensing range via potentiometer
Two-wire technology
Output function normally open / normally closed programmable
